Rapid Deck

Lightweight Modular Aluminium
Handset Slab System

The RapidDeck System is a lightweight modular panel shoring system, designed to significantly speed up erection and stripping compared to conventional shoring. It’s minimal component count reduces handing time and labour costs whilst maintaining high load capacity and durability.

Features & Benefits

  • Lightweight Aluminium Panels: Enabling safe and efficient manual handling without the need for lifting equipment
  • Minimal components: Reduce handling time, and reduce labour costs
  • Integrated Cantilever Technology: Enhances safety and efficiency at slab edges with built-in access and support systems
  • Fast Assembly & Stripping: Rapid erection and dismantling accelerate construction cycles and boost productivity
  • Higher Grade Birch Plywood fitted to the Aluminium frame which gives up to 60 repetitions

Applications

High Rise Buildings

Community units

Complex Projects

Projects with Large Slab Areas

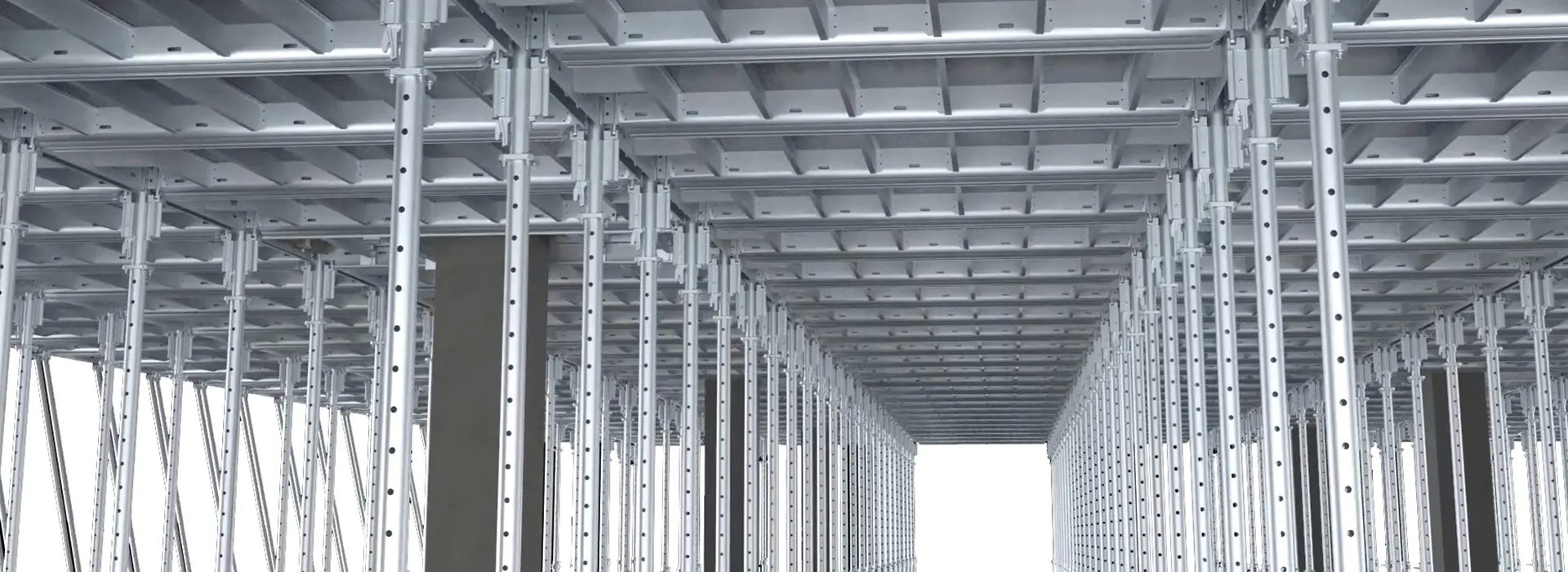

ScaffDeck Video Thumbnail

Main Components

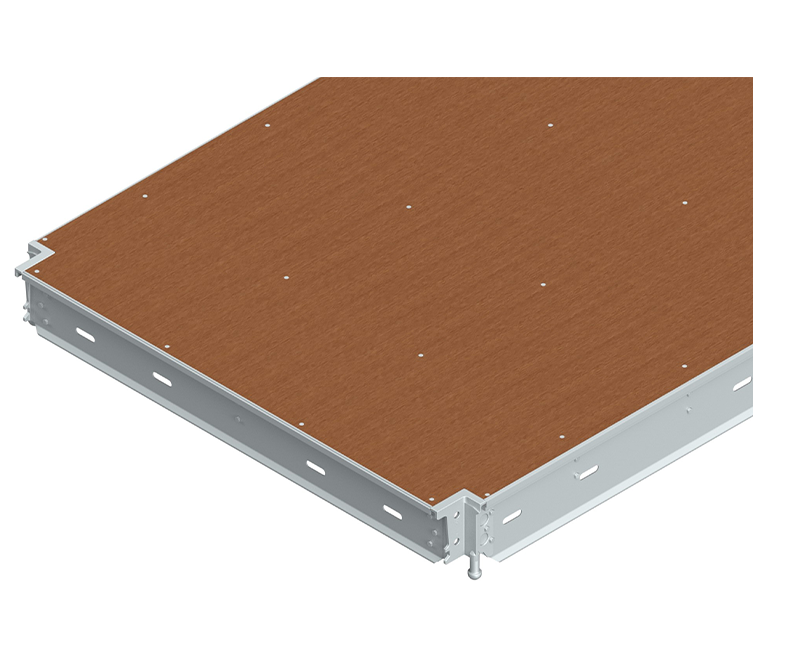

KT-Rapid Panels

KT-Rapid Panels are lightweight, modular crafted from high-grade aluminum profiles. Featuring integrated 12mm birch plywood facing, they offer up to 60 reuses, optimizing efficiency and reducing construction time and labor costs.

Designed to support up to 550mm thick concrete slab.

KT-Rapid Panel is available in the following sizes: KT-Rapid Panel 1200 x 1200
KT-Rapid Panel 1200 x 600
KT-Rapid Panel 1800 x 1200
KT-Rapid Panel 1800 x 600
KT-Rapid Panel 2400 x 1200
KT-Rapid Panel 2400 x 600

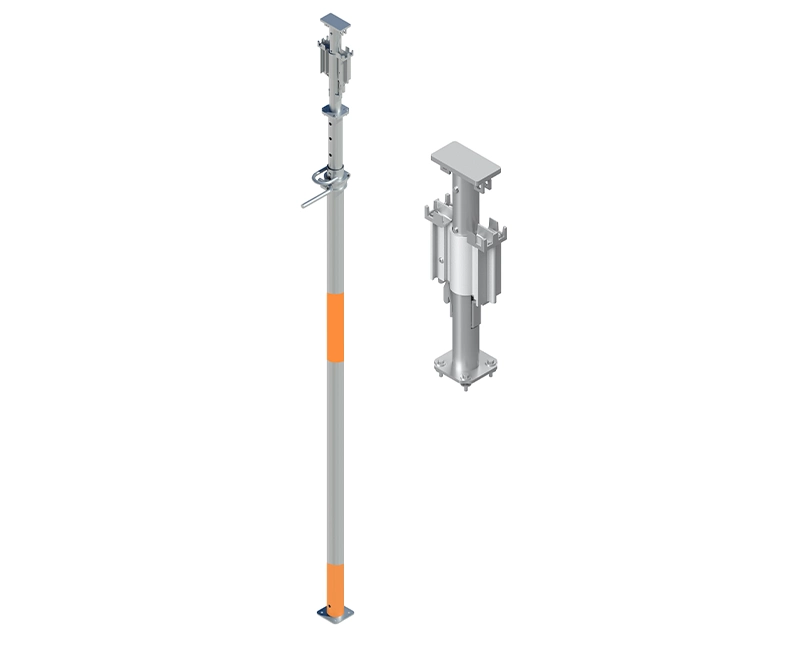

KT-Props & KT-Drop Head

KT-Props are DIN certified props with Load bearing capacity up to 30kN.

The engineered drop head enables early removal of KT-Rapid Panels while preserving the integrity of back propping, ensuring minimal disruption to support systems and optimizing the construction cycle time.

Description Weight (kg)
KT-Europrop BD25 14.01
KT-Europrop CD30 17.77
KT-Europrop CD35 20.38
KT-Europrop CD40 25.41
KT-Europrop CD45 30.46
KT-Europrop CD55 37.54
KT-Drop Head 8.7

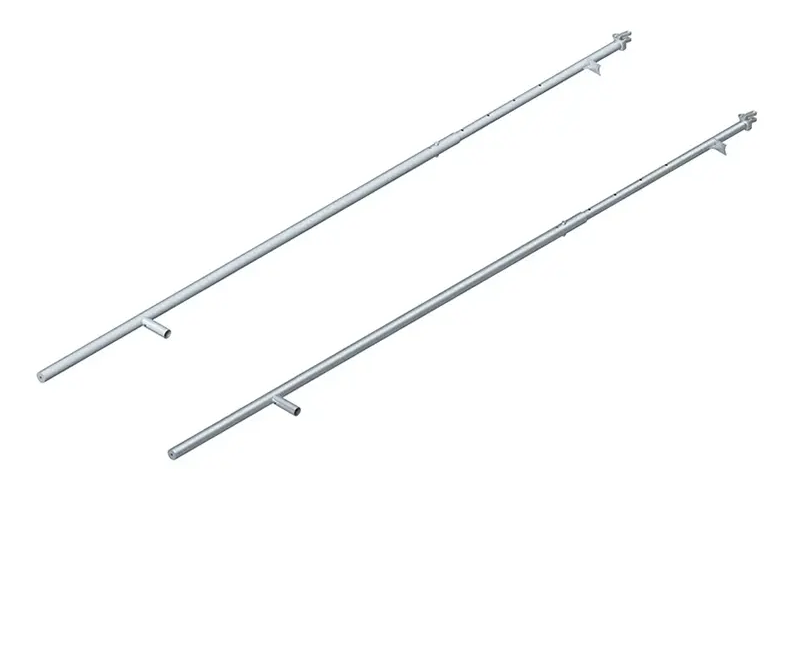

ADT2 G2 Long

Assembly/Disassembly Tool is used for erection & dismantling of panels.

Available in Steel & Aluminium profile.

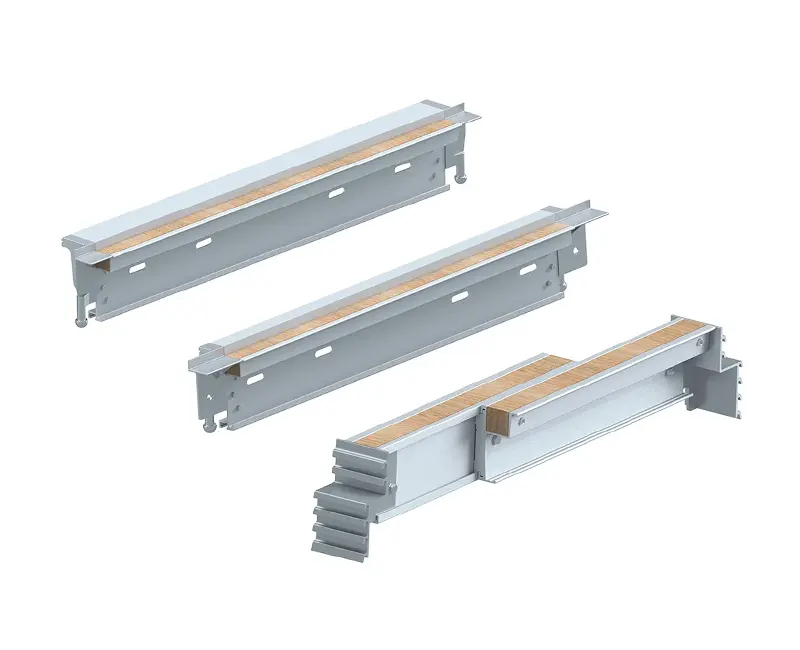

Fillers

KT-Side and End Fillers are precision-engineered infill components designed to bridge gaps between formwork panels and adjacent concrete structures such as walls and columns.

Description Weight (Kg)
KT-Side Filler 1200 5.80
KT-Side Filler 1800 8.10
KT-Side Filler 2400 10.80
KT-End Filler 600 4.51
KT-End Filler 1200 6.9
KT-Telescopic Swivel Beam 3ft 5.40
KT-Telescopic Swivel Beam 5ft 7.5
KT-Telescopic Swivel Beam 10ft 10.20

Technical Specifications

  • Panels: Are manufactured with high grade Alloy Aluminium 6061-T6.
  • Props and accessories: Manufactured with high grade steel, and hot dip galvanized.
  • EN1065 compliant Props with Max Load Capacity of 30kN.
  • 12mm Birch Plywood, 220gsm coating film-faced, external protection is Phenolic Resin, capable upto 60 reuses and both sides are painted.
