KT-Table Form

Advanced Formwork System for
Multi-Level Slab Construction

The KT-TableForm is an advanced mobile table system engineered for fast forming of large slab areas with minimal labor and crane dependence. Fully adjustable and pre-assembled at ground level using the KT-AluBeams and KT-Props, the system allows for slab forming with minimal on-site labour.

Its built-in cantilever platform enhances worker safety at slab edges, while the system’s modular nature significantly reduces construction cycle times and labour requirements.

Features & Benefits

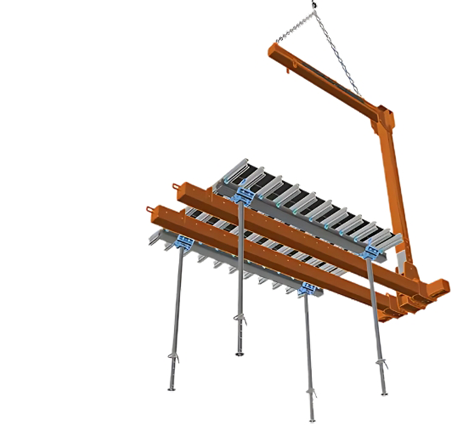

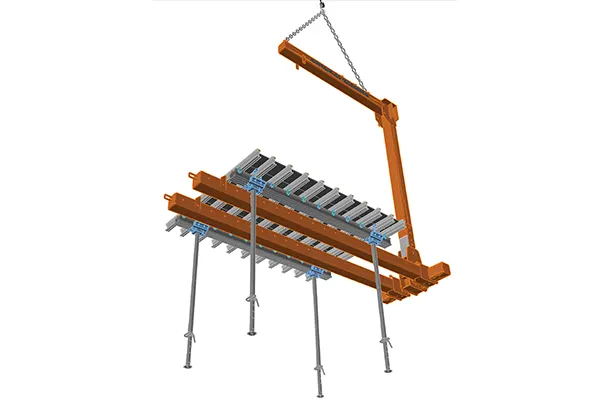

  • The KT-TableForm is a pre-assembled ‘Flying’ system that can be lifted and repositioned as a single unit, ideal for forming large concrete slab areas
  • Highly integrated Mobile Table System for efficient formwork and shoring in multi-storey construction
  • The system is designed to support any given slab up to 5.5m in height & 600mm thick, engineered for floor-to-floor applications in high-rise constructions
  • Mobile: Using a C’Hook, the Table can be relocated to the next floor level efficiently
  • Mechanically adjustable Trolley with Castors enable quick table relocation to the Slab Edges

Applications

Mid - High Rise Buildings

Projects with Large Slab Areas

Technical Specifications

  • All props are EN-1065 Standard compliant, Hot Dip Galvanized, steel grade S355/50c.
  • High load bearing capacity Props - 20kN at fully opened condition & 30kN at fully closed condition.
  • Aluminium Beams are manufactured and tested in compliance with EN755 standards & Alloy 6082 T6. They offer 40% more loading capacity than traditional timber beams and are designed for multiple reuse cycles.

  • Provide vertical support to the Table Form Panels. Adjustable in height to suit floor-to-slab heights. Connected to KT- Tablehead to help secure and stabilize KT-AluBeams.
