The Highest Grade Cup System
in the Middle East
The market leading System Solution for scaffolding in the region, used for all general-purpose access and working at height. Engineered from high-grade galvanized steel, it delivers exceptional strength, durability, and rapid assembly. Its versatile modular design adapts to complex site requirements while ensuring maximum safety and compliance with international standards.

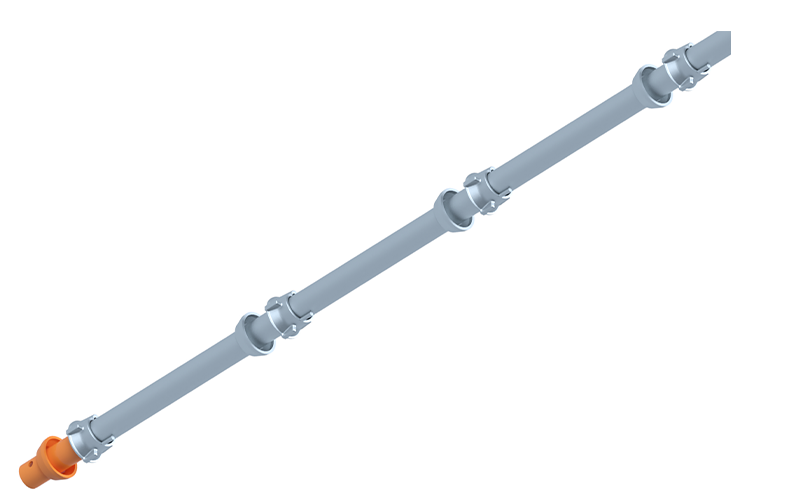

Vertical pipes form the backbone of the scaffolding system, manufactured from 3.2 mm thick Grade 50C galvanized steel tubes for exceptional durability and strength. These high-grade members offer up to 30% higher load-bearing capacity compared to standard lower-grade materials.
Engineered quick locking system.
Available in Sizes: 1.0 m, 1.3 m, 1.5 m, 1.8 m, 2.0 m, 2.3 m, 2.5 m, and 3.0 m

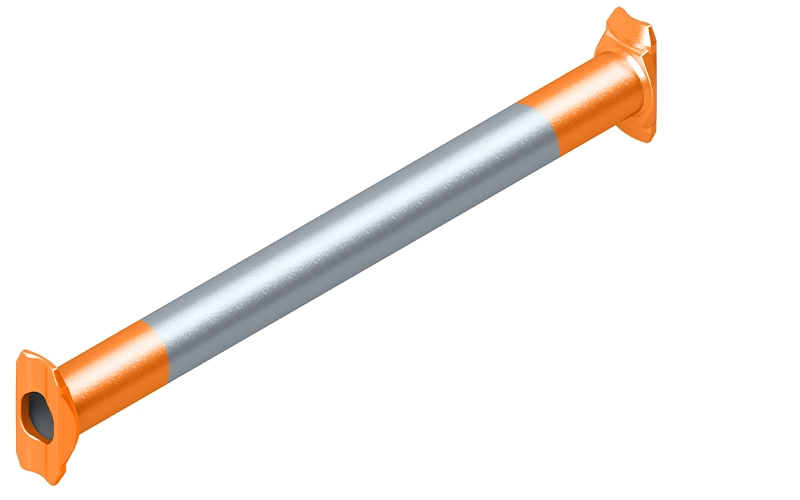

Horizontal members to help support the platform, fabricated from 3.2 mm thick galvanized steel tubes and feature symmetrical forged blade ends, ensuring full interchangeability and enabling rapid, secure assembly
Available from: 0.6 – 2.5m

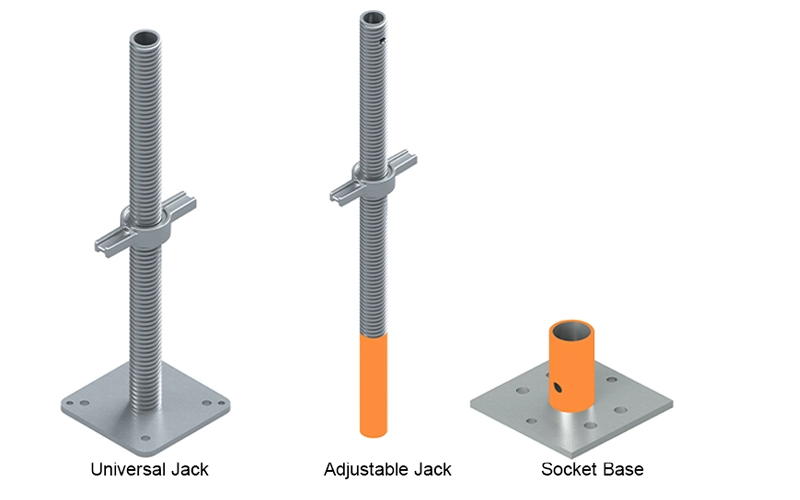

These components distribute the load from the standards and provide precise height adjustment at the base. Universal and Adjustable Jacks made from high-grade galvanized steel, offering up to 0.5 m of precise height adjustment to accommodate ground and soffit level variations with ease.
The Universal Jack has load bearing capacity of up to 74kN.
| Description | Weight (Kg) |
|---|---|
| KT- LOK UNIVERSAL JACK 860mm | 4.1 |
| KT- LOK ADJUSTABLE JACK 760mm | 4.5 |
| KT-LOK SOCKET BASE | 2.25 |

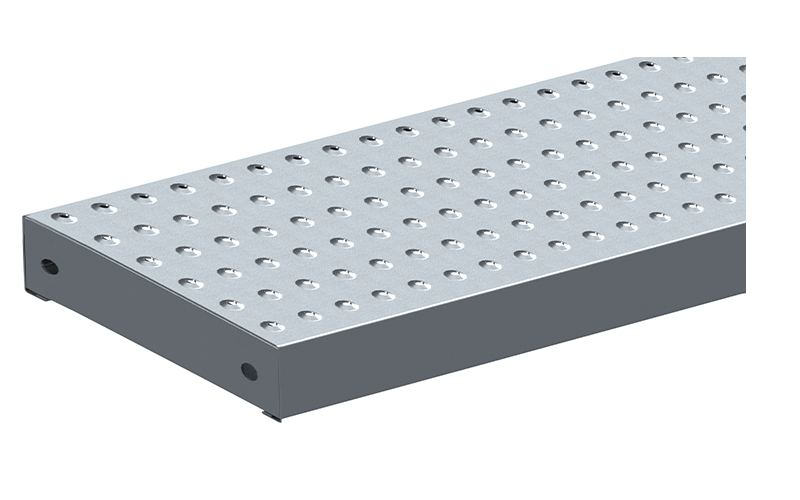

Anti-slip perforated steel planks used as walkways and platforms on scaffolds. Zinc coated for corrosion protection, for industrial and commercial construction sites.

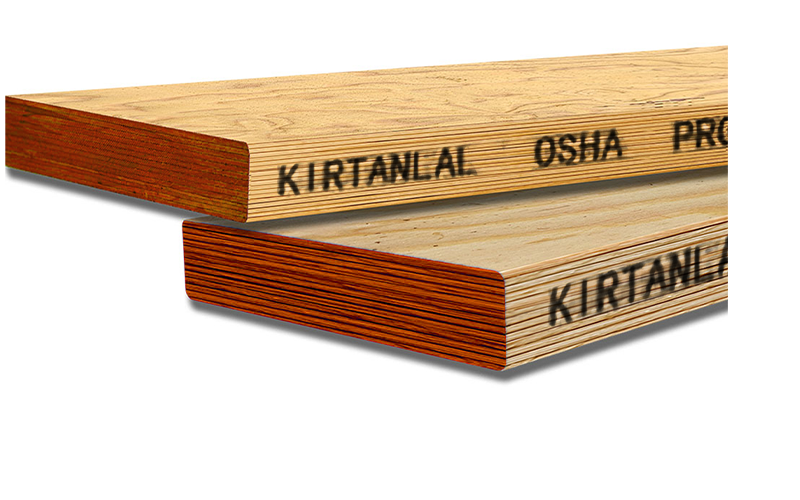

Individually proof tested OSHA boards, made from 18 layers of laminated veneer lumber and Boil tested for 72 hours. Engineered wood planks used for safe and stable scaffold platforms used for scaffold working platforms and construction staging.
