KT- Form

Heavy-Duty Double Sided Vertical
Formwork System

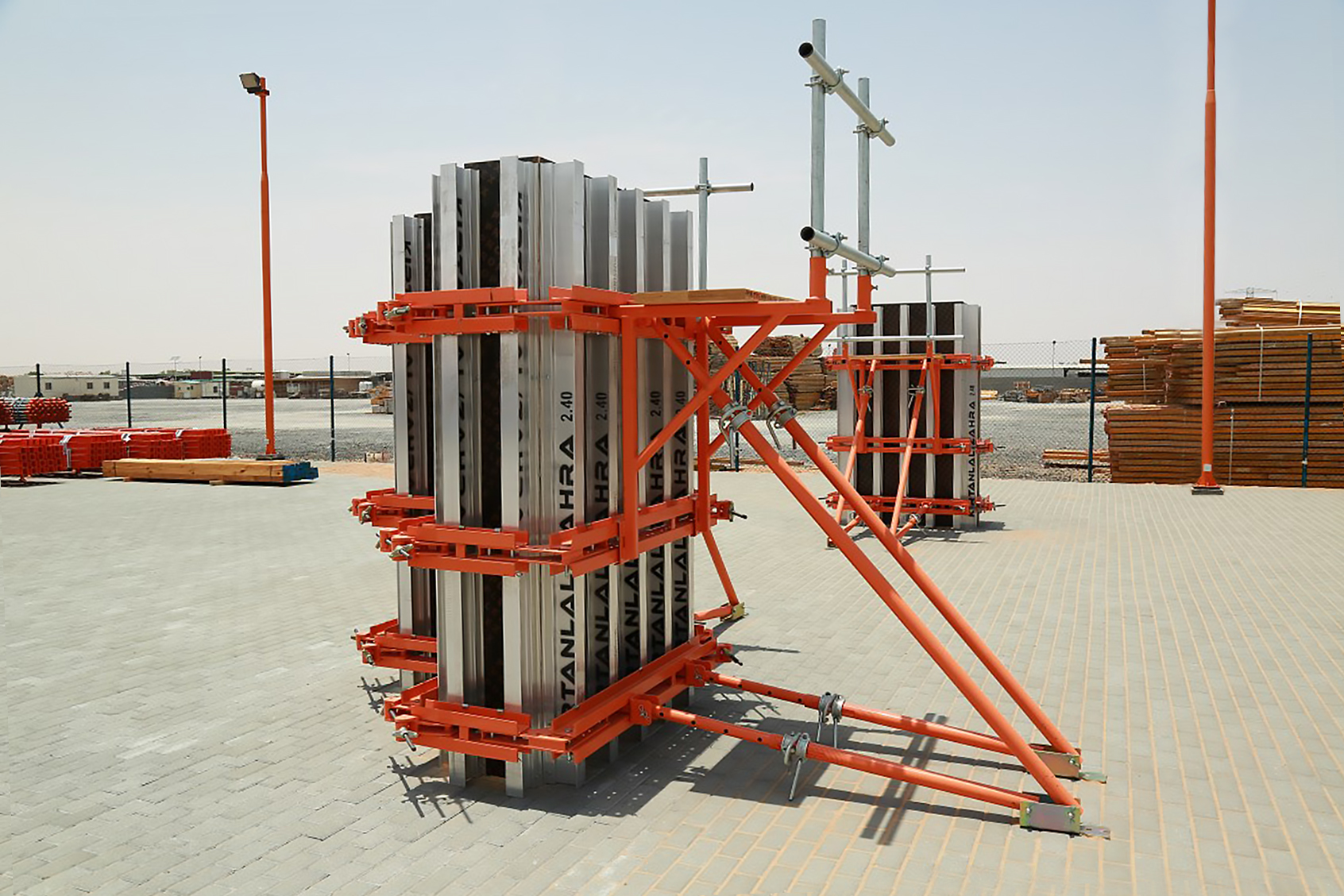

The KT-Form Double sided Wall formwork system is a high performing handset solution for vertical wall and column forming. Designed for quick assembly the system is adaptable to complex projects, including tanks, slopes, non-uniform surfaces and other irregular layouts.With the ability to support large panels and fewer components, that minimize crane time. Kirtanlal delivers increased speed & efficient services through this system.

Features & Benefits

  • Consistent Wall Finish: Flexible Panel Arrangement for uniform wall patterns
  • Efficient Connections: Simple Waler-to-Waler and Waler-to-AluBeam connections. Speeds up assembly while maintaining alignment
  • Built to withstand fresh concrete pressures of up to 60kN/m2
  • Fast Assembly & Dismantling: Sturdy, modular components reduce labour time and increase efficiency
  • Replaceable Plywood Facing: Simplifies maintenance and reduces downtime in case of damage
  • Optimized Storage & Transport: Compact stacking minimizes transport volume and yard space
  • Minimal Fillers Required: Reduces need for gap-filling elements between panels, streamlining assembly
  • Aluminum beams: available from 1.2m to 5.4m lengths

Applications

Bridge Abutments

Retaining, Shear & Core Walls

Water Reservoir Walls

Column Formwork

Buildings

Technical Specifications

  • All components are manufactured from Steel GradeS275/43c.
  • Tie Rod, Wing Nut & Washer Plate: As per EN-GJMW-400-5.

  • Single Web Beams are manufactured and tested in compliance with EN755 standards. They offer 40% more loading capacity than traditional timber beams and are designed for multiple reuse cycles.
