KT- Flex

Advanced High Load Capacity
& Lightweight Prop System

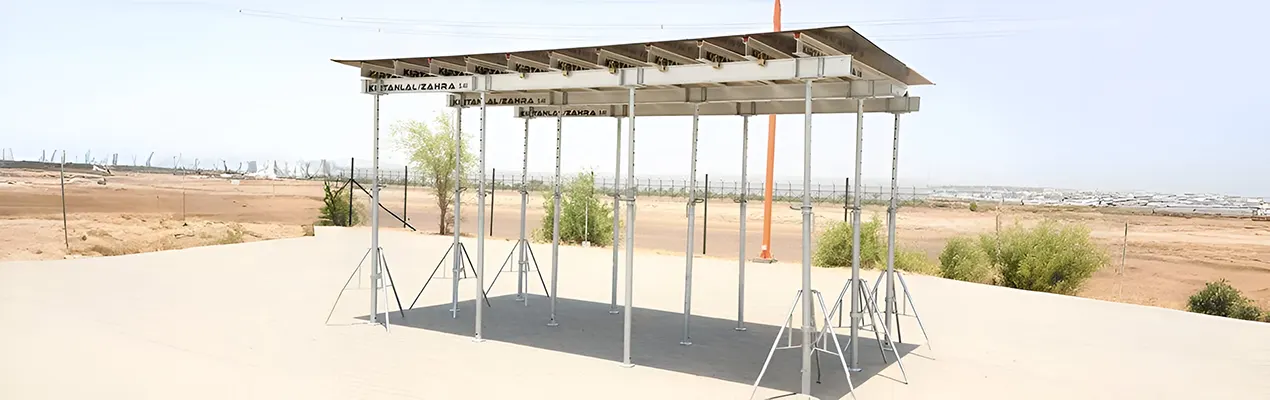

The KT-Flex System, composed of aluminum beams and props, has perfected the most common crucial component for all support formwork systems out there. The hand-set system allows custom floor-slabs, drop beams and other structural elements during construction to be erected quickly and easily, while offering full flexibility in the slab layout. With higher loading capabilities, and reduced components required, the KT-Flex is fast to erect and dismantle offering significant value additions to construction projects.

Features & Benefits

  • Wide Height Range of KT-Props & High Load Bearing Capacity: Adjustable Support heights from 2.5- 5.5m with 20kN at fully opened condition & 30kN at fully closed condition
  • Enhanced Stability: Base support to KT-Props provided by KT-Tripod for safe erection and dismantling
  • Compliance Standards: All KT-Props are Designed, Tested and Manufactured in accordance with EN1065 safety and performance standards

Applications

High Rise Buildings

Industrial Warehouses

Repetitive Units

Projects with large slab areas

Technical Specifications

  • All props are EN-1065 Standard compliant, Hot Dip Galvanized, Steel grade S355/50c, class D compliant.
  • Aluminium Beams are manufactured and tested in compliance with EN755 standards & Alloy 6082 T6. They offer 40% more loading capacity than traditional timber beams and are designed for multiple reuse cycles.
  • Special designed G-Pins used to release load from Props.

    KT Item Code Prop Type Outer Pipe Dia. (mm) Inner Pipe Dia. (mm) Min. Opening Length (mm) Max. Opening Length (mm) Weight (Kg)
    PROBD25250043025GL BD25 60.3 48.3 1500 2500 14.01
    PROCD30300043030GL CD30 63.5 50 1800 3000 17.77
    PROCD35350043035GL CD35 73.5 60.3 2000 3500 20.38
    PROCD40400043040GL CD40 73.5 60.3 2300 4000 25.41
    PROCD45450043045GL CD45 76.1 63.5 2500 4500 30.46
    PROCD55550043055GL CD55 88.9 76.1 3000 5500 37.54
